ESP32-Setup

Mr. Seng Theara

Install Arduino IDE

Power Supply

Arduino Software

Install Arduino IDE

Power Supply

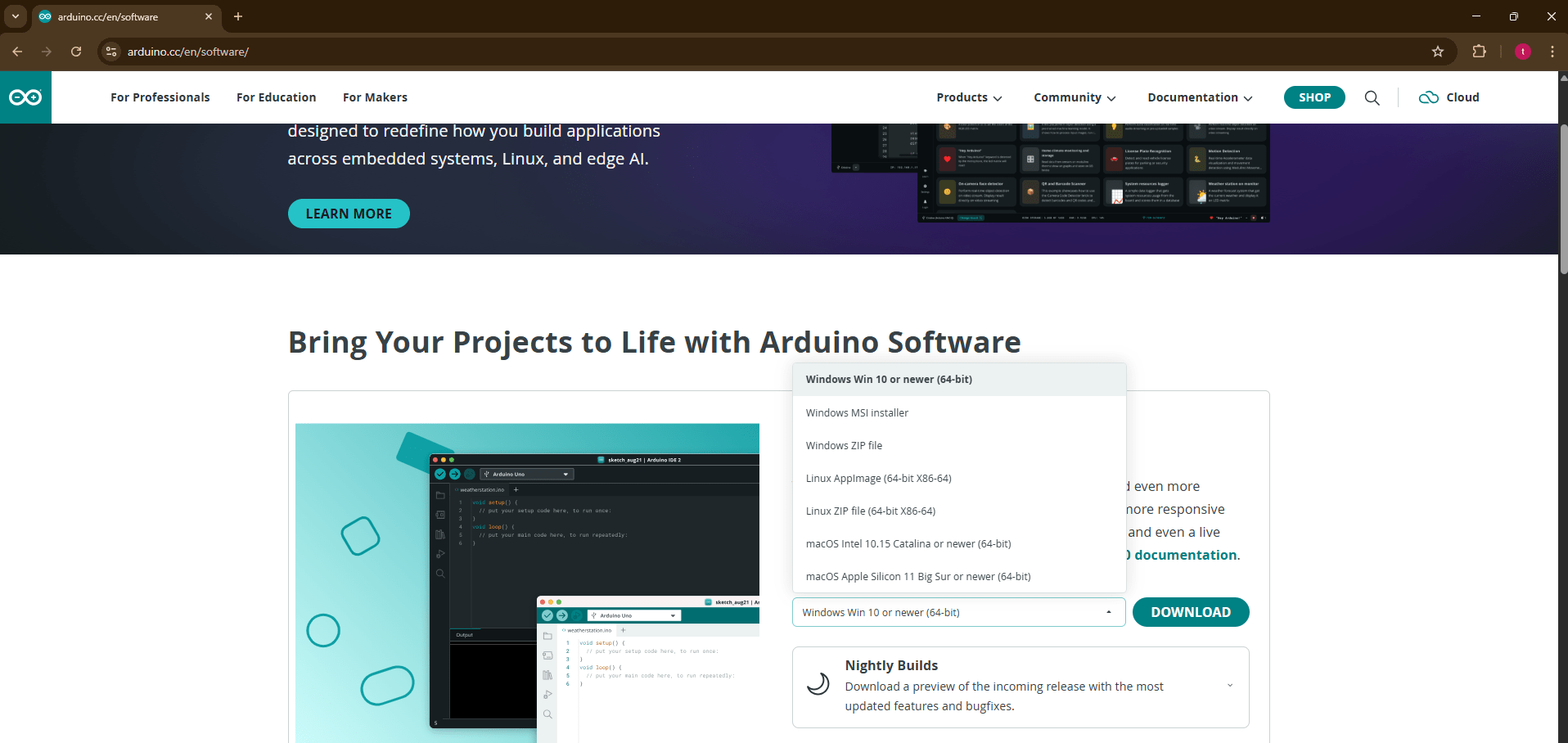

Choose based on your OS and download the software

Arduino Software

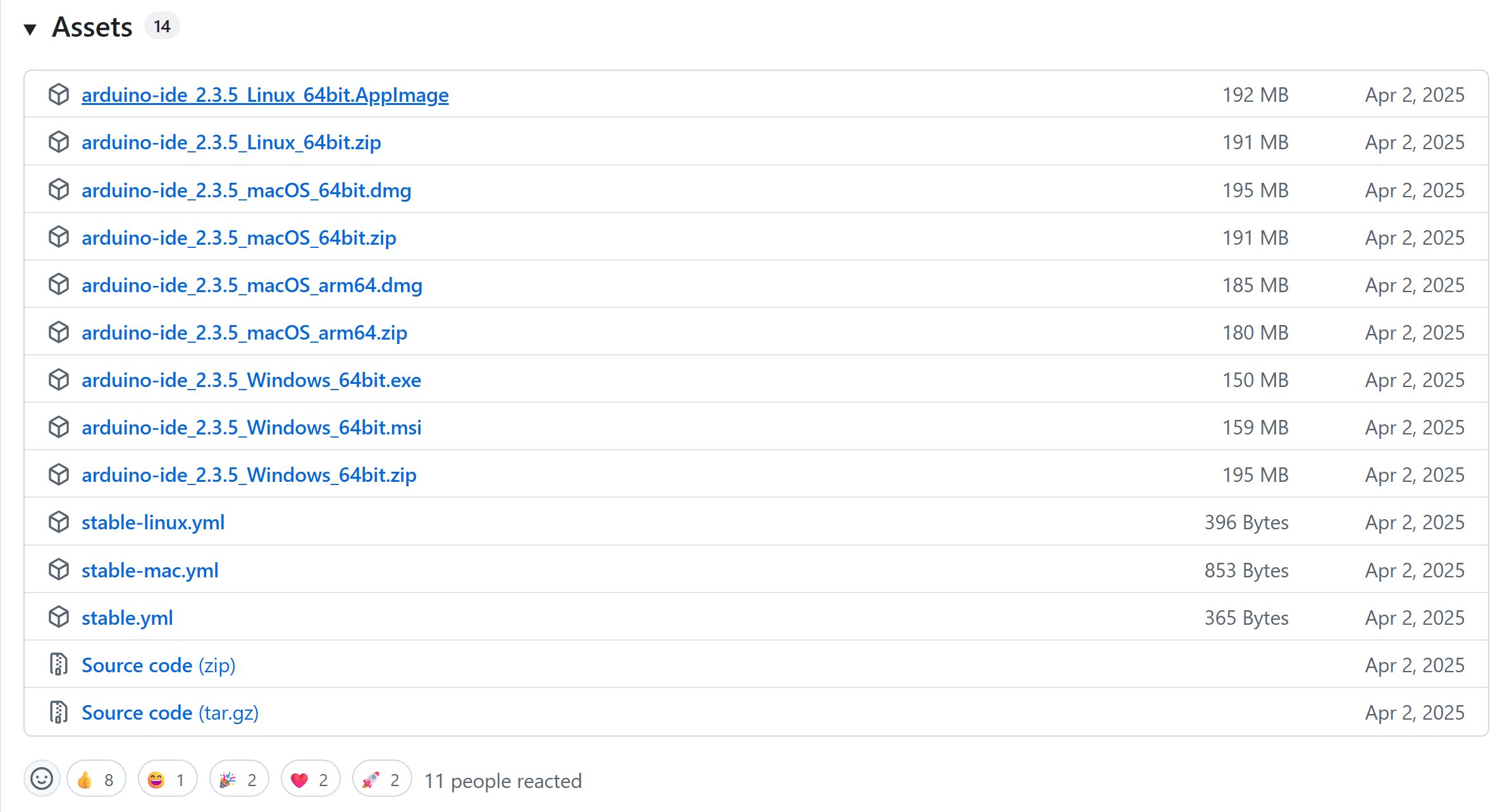

Since the newest version (2.3.7) has some problem with the timeout, so we gonna use the version 2.3.5 instead

CP2102 Driver Installation

Power Supply

This IC 2102 is used to convert the data from your laptop to the ESP32. Mostly on Window, It doesn't have the driver

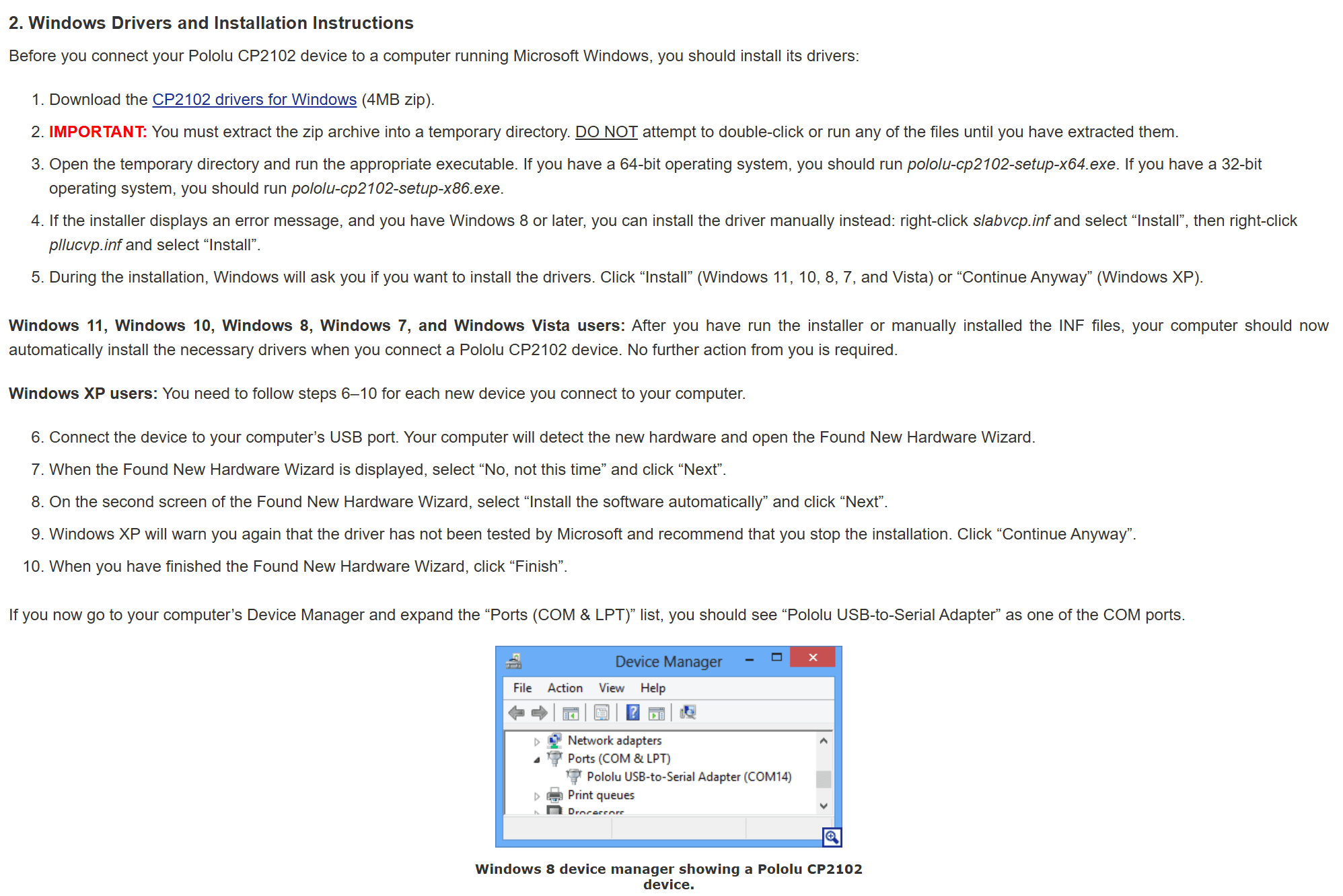

CP2102 Driver Installation (Windows users only. macOS is fine. Linux users—>figure it out yourself 😄)

Power Supply

Link for CP2102 Driver

ESP32 Setup

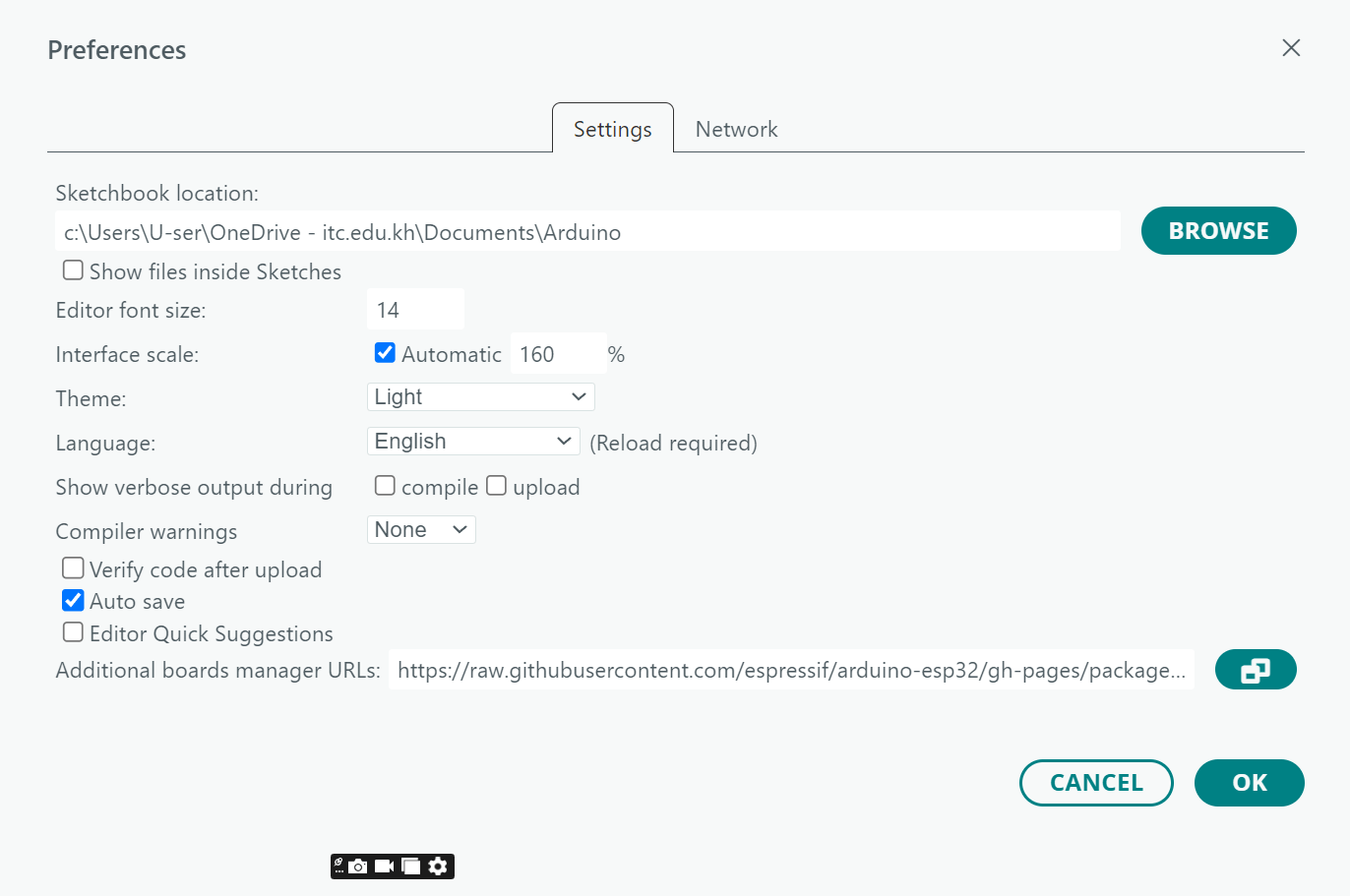

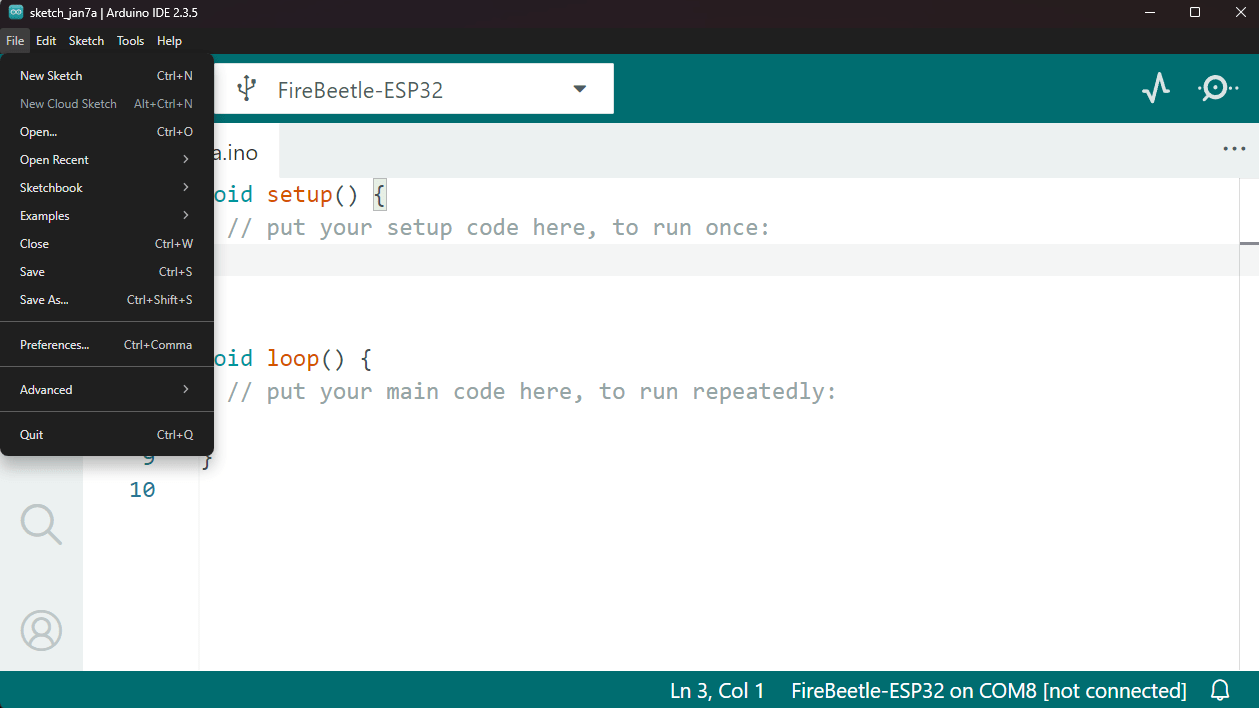

Click File and choose Preferences

ESP32 Setup

Click File and choose Preferences

copy this text:

https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json

paste in here

ESP32 Setup

Click File and choose Preferences

copy this text:

https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json

paste in here

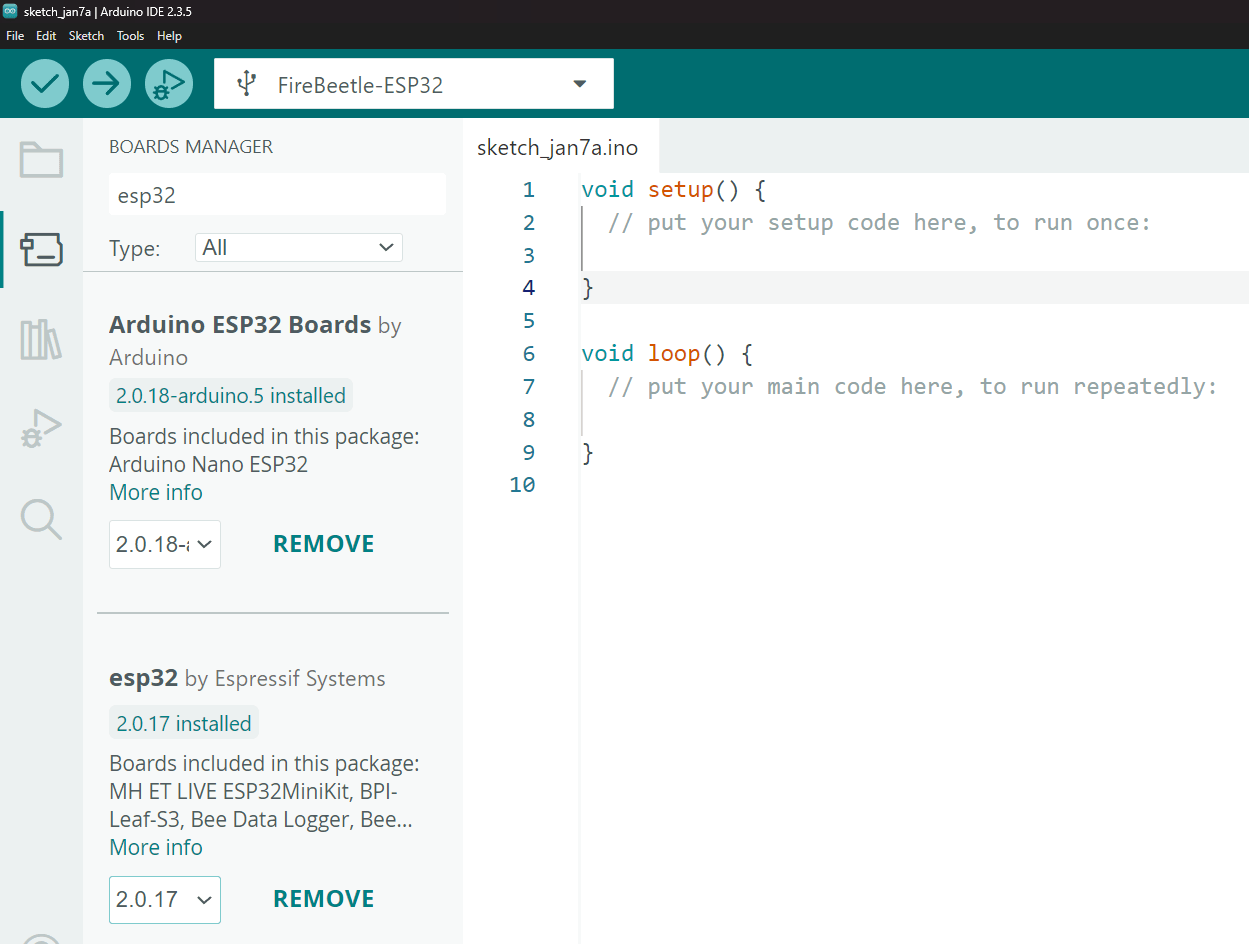

Choose Board Manager

Search for ESP32 and install version 2.0.17

ESP32 Setup

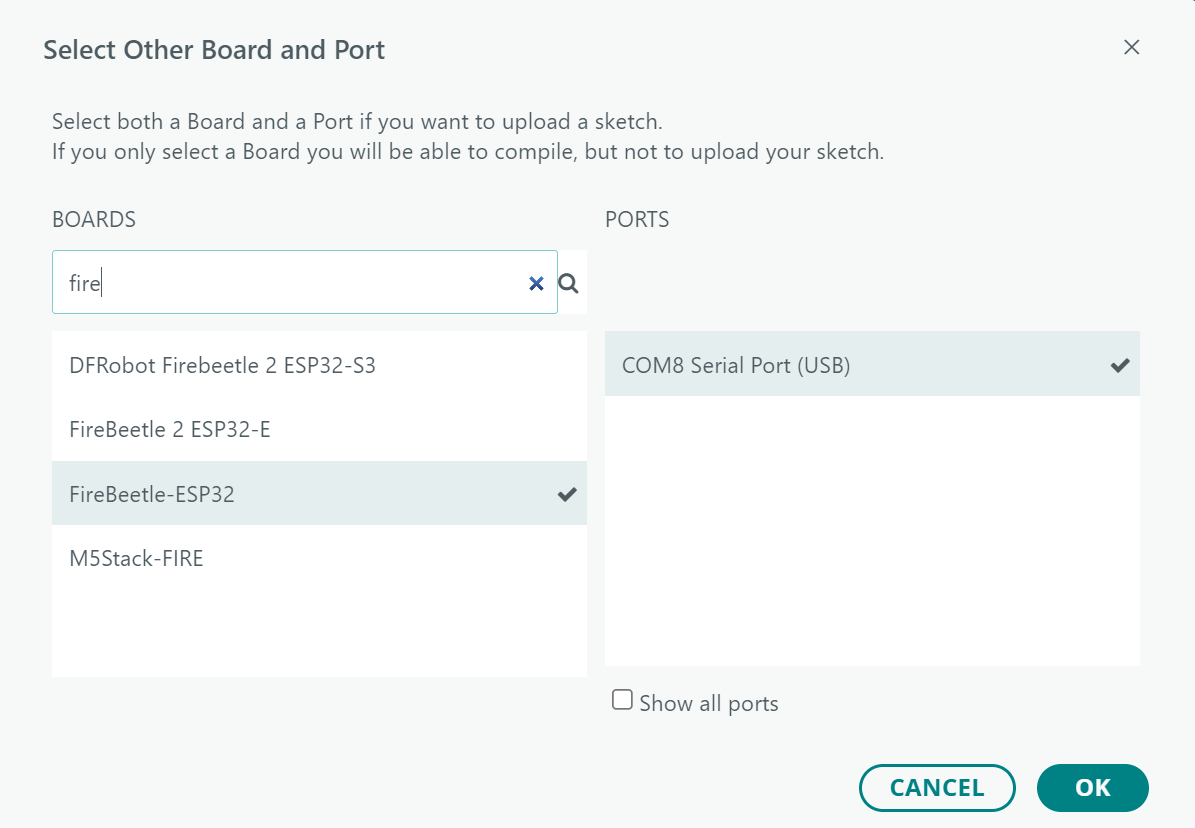

Search for

FireBeetle-ESP32

Select COM for the ESP32

Testing the Code with ESP32 on Arduino IDE

void setup() {
  // put your setup code here, to run once:
  pinMode(12, OUTPUT);
}

void loop() {
  // put your main code here, to run repeatedly:
  digitalWrite(12, HIGH);
  delay(2000);
  digitalWrite(12, LOW);
  delay(2000);
}

Testing
