Web Server Control Lab
Task 4
Task 4 - Custom Text to LCD (15 pts)
• Add a textbox and a Send button to the web page.
• Text entered by the user must appear on the LCD.
• Text longer than 16 characters should scroll across the LCD.
• Evidence: Short video showing text sent from the browser to the LCD

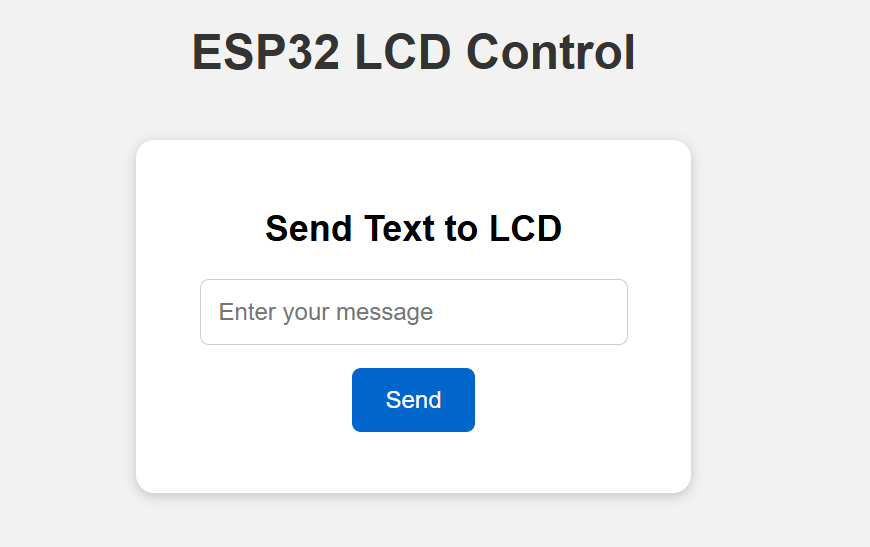

The webpage should display similar to this
Task 4
Import the library
import network
import socket
import time
from machine import Pin, SoftI2C
from machine_i2c_lcd import I2cLcd
Wifi Setting
# WIFI SETTINGS
ssid = "---"
password = "---"Servo Setup
# LCD SETUP
I2C_ADDR = ________ ## Add the LCD Address
i2c = SoftI2C(
sda=Pin(21),
scl=Pin(22),
freq=400000
)
lcd = I2cLcd(
i2c,
I2C_ADDR,
2,
16
)
lcd.clear()
### Display the "IoT LAB" on the first row
________
### Display the "Task 2" on the second row
________
time.sleep(2)
lcd.clear()Task 4
DECODE TEXT FROM URL Function
### DECODE TEXT FROM URL
def url_decode(text):
result = bytearray()
index = 0
while index < len(text):
if text[index] == "+":
# Convert + to a space
result.append(32)
index += 1
elif text[index] == "%":
try:
hex_value = text[
index + 1:index + 3
]
result.append(
int(hex_value, 16)
)
index += 3
except:
index += 1
else:
result.extend(
text[index].encode()
)
index += 1
try:
return result.decode("utf-8")
except:
return str(result)Task 4
Display the text on the LCD
def display_message(message):
lcd.clear()
### write a code in here to diplay the message on the LCD with lcd.putstr() if the lenght of the message is less than 16.
### If the message is more than 16, use lcd.scroll_text() to display the message
________Task 4
Webpage Function
# CREATE WEBPAGE
def create_webpage():
html = """
<!DOCTYPE html>
<html>
<head>
<title>ESP32 LCD Control</title>
<meta name="viewport"
content="width=device-width,
initial-scale=1">
<style>
body {
font-family: Arial;
text-align: center;
background-color: ________;
padding: 20px;
}
h1 {
color: ________;
}
.card {
background-color: white;
width: ________;
margin: ________ ________;
padding: ________;
border-radius: ________;
box-shadow:
0 2px 8px
rgba(0, 0, 0, 0.2);
}
input[type="text"] {
width: 260px;
padding: 12px;
font-size: 16px;
border: 1px solid #cccccc;
border-radius: 6px;
margin-bottom: 15px;
}
button {
background-color: #0066cc;
border: none;
color: white;
padding: ________ ________;
border-radius: ________;
font-size: 16px;
cursor: pointer;
}
button:hover {
background-color: ________;
}
#status {
color: #28a745;
margin-top: 15px;
font-weight: bold;
}
</style>
<script>
function sendMessage() {
var message =
document.getElementById(
"message"
).value;
if (message == "") {
document.getElementById(
"status"
).innerHTML =
"Please enter a message.";
return;
}
fetch(
"/message?text=" +
encodeURIComponent(message)
);
document.getElementById(
"status"
).innerHTML =
"Message sent to LCD";
}
</script>
</head>
<body>
<h1>________</h1>
<div ### Add class card with the input to insert the message
________
<br>
<button onclick="sendMessage()">
Send
</button>
<p id="status"></p>
</div>
</body>
</html>
"""
return html
Task 4
WIFI Connection
wifi = network.WLAN(
network.STA_IF
)
wifi.active(True)
if not wifi.isconnected():
print("Connecting to Wi-Fi...")
wifi.connect(
ssid,
password
)
while not wifi.isconnected():
print(".", end="")
time.sleep(1)
ip = wifi.ifconfig()[0]
print()
print("Wi-Fi connected!")
print("ESP32 IP address:", ip)
print("Open this address:")
print("http://" + ip)
# ==============================
# START WEB SERVER
# ==============================
address = socket.getaddrinfo(
"0.0.0.0",
80
)[0][-1]
server = socket.socket()
server.setsockopt(
socket.SOL_SOCKET,
socket.SO_REUSEADDR,
1
)
server.bind(address)
server.listen(1)
print("Web server is running...")
Task 4
Main Program
# MAIN PROGRAM
while True:
client = None
try:
client, client_address = (
server.accept()
)
request = client.recv(1024)
request = request.decode()
request_line = request.split(
"\r\n"
)[0]
print("Request:", request_line)
# RECEIVE CUSTOM TEXT
if "GET /message?text=" in request_line:
start = ________
end = ________
encoded_message =________
message = ________
print("Message:", message)
# Respond before scrolling
client.send(
"HTTP/1.1 204 No Content\r\n"
)
client.send(
"Connection: close\r\n"
)
client.send("\r\n")
client.close()
client = None
# Display or scroll the message
________
# SEND WEBPAGE
else:
webpage = create_webpage()
client.send(
"HTTP/1.1 200 OK\r\n"
)
client.send(
"Content-Type: text/html\r\n"
)
client.send(
"Connection: close\r\n"
)
client.send("\r\n")
client.sendall(webpage)
except Exception as error:
print(
"Server error:",
error
)
finally:
if client is not None:
client.close()
